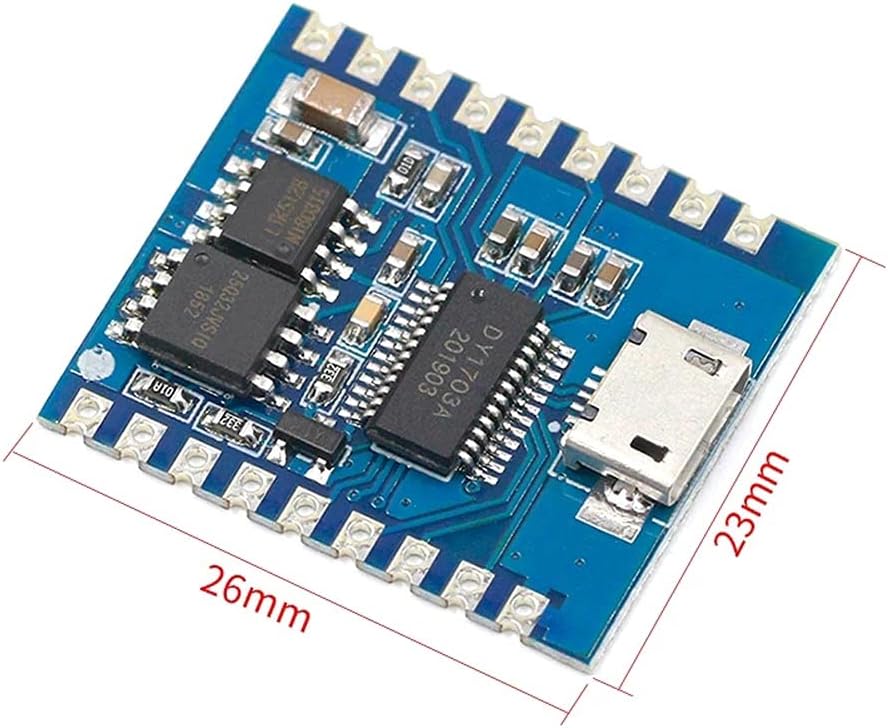

Rakstore DY-SV17F MP3 4MB Voice Playback Module Player Module Flash Voice Module IO Trigger Serial Port Control USB

DY-SV17F Voice Playback Module MP3 Player Module 4MB Flash Voice Module IO Trigger Serial Port Control USB Download

Rakstore DY-SV17F MP3 4MB Voice Playback Module Player Module Flash Voice Module IO Trigger Serial Port Control USB

Product Features: Support MP3, WAV decoding format. Support sampling rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48. 24-bit DAC output, support 90dB dynamic range, support 85dB signal-to-noise ratio. Onboard 32Mbit (4MByte) flash storage, can be connected to the computer to update audio files through the USB data cable. With 5W Class D amplifier, it can directly drive 4, 3~5W speakers. The UART serial port controls the voice broadcast function, which can control playback, pause, song selection, volume addition and subtraction, etc. The maximum selection is 65535 songs, and the baud rate is 9600 bps. Support IO trigger playback function, 8 IO ports trigger 8 tracks or 8 IO ports to trigger 255 tracks. Support One_line single bus serial port control, can control playback, pause, song selection, volume addition and subtraction and other functions. Supports 3 configuration IOs for up to 7 operating mode selections.

Brand: Rakstore

module mp3, usb download, sv17f voice, module trigger, rakstore, sv17f, mp3, module 4mb, serial, port, serial port, module Electronics Computers & Accessories Computer Accessories & Peripherals Computer Cable Adapters Serial Adapters

Key Features

• ✓ Support MP3, WAV decoding format.
• ✓ Support sampling rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48.
• ✓ 24-bit DAC output, support 90dB dynamic range, support 85dB signal-to-noise ratio.
• ✓ Onboard 32Mbit (4MByte) flash storage, can be connected to the computer to update audio files through the USB data cable.
• ✓ With 5W Class D amplifier, it can directly drive 4, 3~5W speakers.
